Product Description

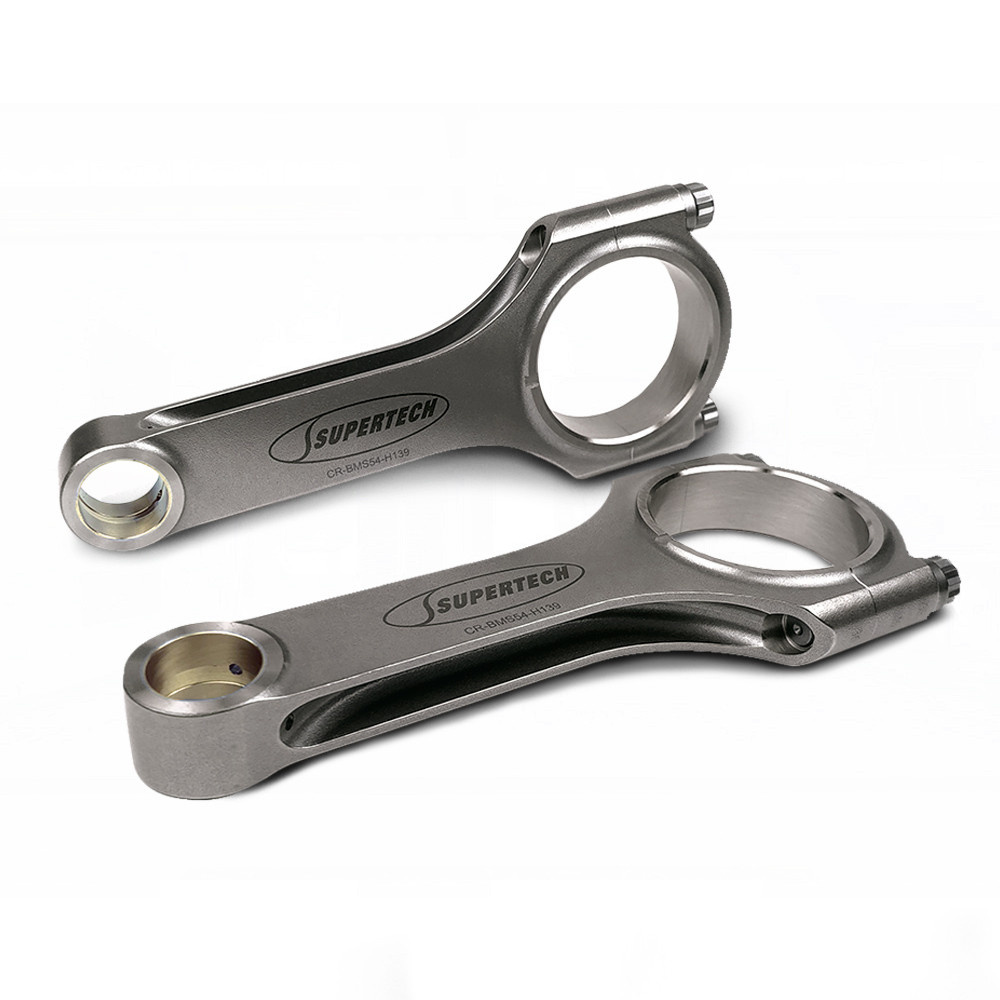

BMW H- Beam Connecting Rod Set - Supertech CR-BMN55-H144.35-6
Features:
- Design: H-Beam
- Weight: N/A per rod
- Rod Count: Set of 6
- Manufactured from high tensile strength 4340 alloy steel
- Comes standard with ARP 2000 bolts (220,000 psi clamp load)
- Rated for 150hp per cylinder
- Upgrade available to ARP 625+ bolts (280,000 psi clamp load, 250hp per cylinder)
Measurements:
- Material: Forged 4340 Alloy
- Design: H- Beam
- Center to Center: 144.35mm
- PE Bore (mm): 22mm Full Float
- PE Width (mm): 20.88mm
- BE Bore (mm): 53.60mm
- BE Width (mm): 20.88mm
Benefits:
- Exceptional wear and fatigue resistance under high-stress conditions
- In-house design using state-of-the-art CAD and FEA technology
- Ideal for high-performance, turbocharged, or high-RPM engine builds
