Product Description

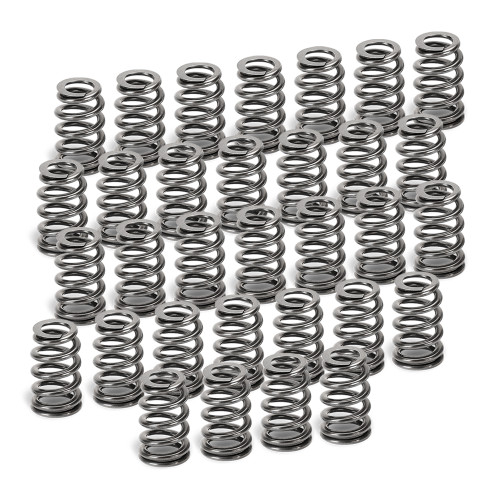

BMW Beehive Valve Springs - Supertech SPR-BMS65-BE1-40
All Supertech valve springs are manufactured using premium Superclean Chrome Silicon Vanadium Steel alloy, engineered for high RPM durability and long-lasting performance. This premium alloy provides excellent structural memory, minimizing fatigue and helping your valvetrain maintain peak operation under stress.
Every Supertech valve spring is computer-designed to keep wire stress levels within the fatigue limits and control harmonics at high RPM. We utilize advanced simulation and precision engineering to ensure each spring delivers reliable load characteristics, making them ideal for demanding street and race applications.
This spring features a beehive profile designed to reduce valvetrain mass and improve high-RPM stability. Its specifications include a spring rate of 10.30lbs/mm, a coil bind height of 27mm, a top OD of 21.60mm, and a bottom OD of 26.50mm.
Features:
- Beehive profile improves stability and reduces mass
- 10.30lbs/mm spring rate ensures optimal valve control
- 27mm coil bind height for high-lift compatibility
- 21.60mm top OD and 26.50mm bottom OD for precise seat and retainer fit
- Premium chrome silicon vanadium alloy for extreme durability
- Note: to be used with Factory Retainer and base
Measurements:
- Spring Base O.D.: 26.5mm
- Spring Base I.D.: 18.7mm
- Spring Top O.D.: 21.6mm
- Spring Top I.D.: 13.8mm
- Seat Pressure (lbs@mm): 77 @ 40.1
- Open Lift (lbs@mm): 180 @ 10
- Max Net Lift: 12.2mm
- Coil Bind: 27mm
- Rate: 10.3 lbs/mm
Benefits:
- Enhanced RPM range and improved valvetrain stability
- Extended spring life and reliability under high loads
- Reduced valve float and improved engine response
- Ideal for high-performance, turbocharged, and endurance applications
